通过 SIMATIC IPC377E，可以在工业环境中使用http://en.cbficoldroom.net/新 PC 技术。由于具有大量接口，很容易连接到现有装置和新装置中。其价格极具吸引力，有利于经济高效地实现工业应用。所有固定配置都可直接从库存提供。

该模块具有以下特点：

  • http://en.cbficoldroom.net/新的无风扇 PC 技术

  • 极具吸引力的价格

  • 可现货提供

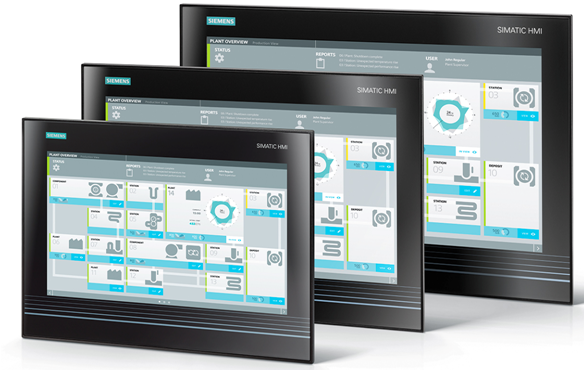

  • 12" TFT 触控型

  • 15" TFT 触控型

  • 19" TFT 触控型



优势

Future-proof due to latest PC technology

  • Intel Celeron Quad Core Processor (N3160, 1.6 GHz)

  • 4 GB work memory - expandable up to 8 GB

  • 1 x mPCIe and 1 x mSATA for flexible expansion

  • Dual monitoring option

Easy connection using a variety of interfaces

  • 4 x COM (RS 232/RS 485/RS 422)

  • 6 x USB - of which 2 x USB 3.0

  • 2 x Gbit LAN

  • 1 x DisplayPort & 1 x VGA

Proven reliability due to "Made for Industry" & SIMATIC quality

  • Fanless, closed industrial design (IP40)

  • Run-in tested for fast and trouble-free commissioning

  • Certificates for worldwide use

  • Flexible mounting options without accessories (DIN rail, wall and desktop mounting)

Economic solutions and fast availability

  • Ideal platform for cost-optimized PC and HMI applications in the industrial environment

  • Attractive packages with SIMATIC HMI software

  • Available direct from stock



应用

The IPC377E is versatile and can be used in factory automation, warehousing and logistics as well as in assembly workstations, for example.

Areas that can be covered by the applications include the following:

  • HMI applications

  • Data collection (e.g. production and energy data)

  • Production networking and communication

  • Easy image processing

  • Simple control tasks



Basic design

  • All-metal enclosure with IP40 degree of protection

  • Integrated 24 V DC power supply

  • Processor: Intel Celeron N3160, 1.6 GHz – burst frequency 2.24 GHz, Quad Core

  • Main memory: 4 GB DDR3L, expandable up to 8 GB

  • Drive: 500 GB HDD

  • Interfaces:

    • 2 x Gbit Ethernet (RJ45)

    • 2 x USB 3.0; 4 x USB 2.0

    • 4 x COM, of which 2 x in BIOS selectable between RS 232 / RS 485 / RS 422

    • Audio in/out

  • Video interfaces:

    • 1 x DisplayPort

    • 1 x VGA

  • Expansion options

    • 1 x mPCIe (half-size)

    • 1 x mSATA (full-size)

Versions – available directly from stock

  • Windows 7 Ultimate, multi-language, 64-bit – pre-installed and activated

  • Without operating system
